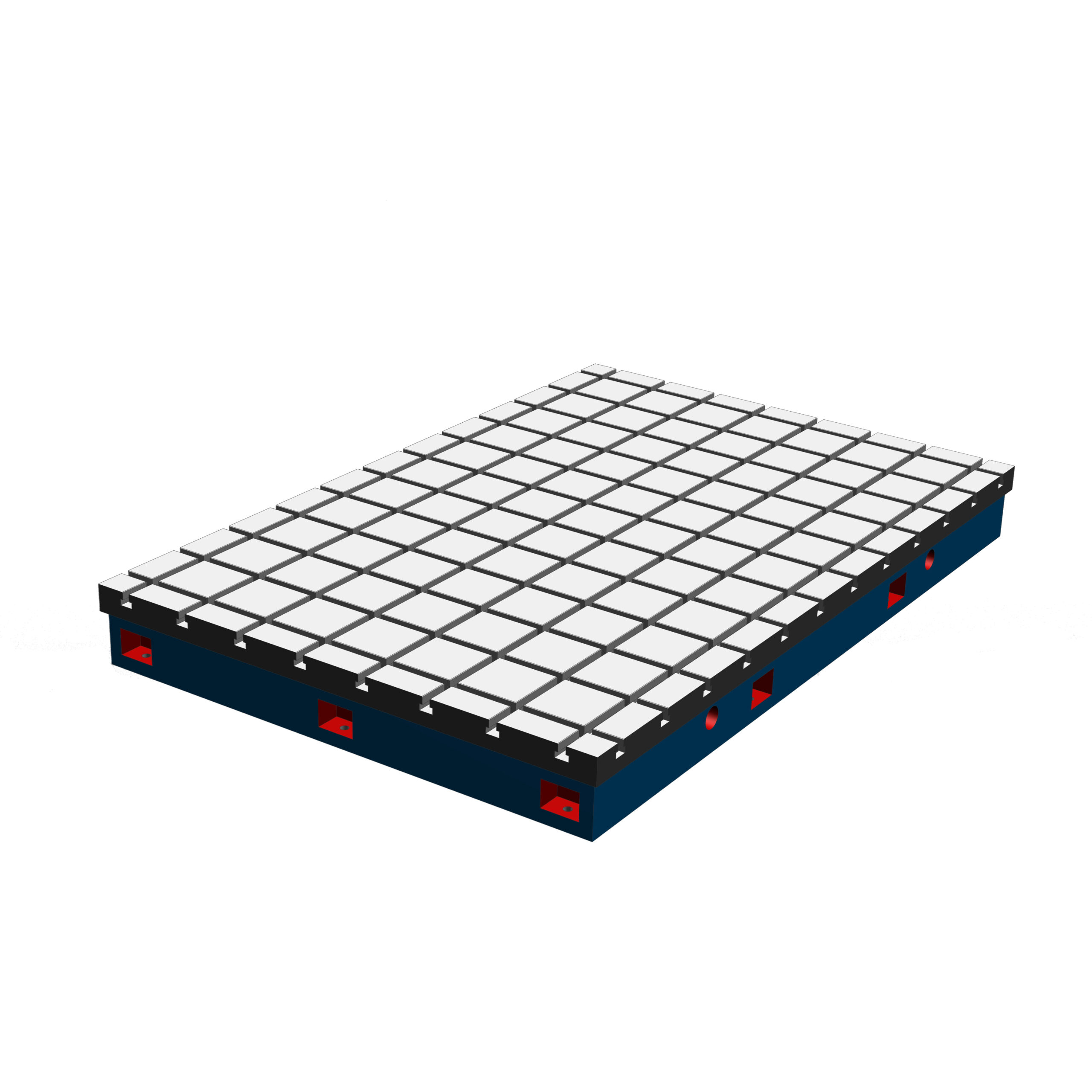

Cross T-slot plate(S)

Cross T-slot plate（S）

1. T-slot platform use: The platform is mainly used for welding, assembly or fixing of large equipment, motor and other equipment.
2. Installation form:

①Don’t need to be fixed, directly on the ground to use, use the adjustment pad iron level.
② Fixed use: Use anchor bolts or ground anchors to fix the foundation.
③ For smaller equipment platforms, it can be used alone, and for large equipment, it can be used as a patchwork of multiple platforms
3. Material: HT200~HT300
4. Hardness: HB170~220
5. Structure:Hollow structure, customized thickness and reinforcement structure according to customer load requirements.
6. T-slot platform specifications:200×200-3000×8000mm(specifications can be customized according to user drawings or production and processing agreed by both parties.)
7. T-slot spacing:Usually according to the platform size between 200 and 400, according to customer needs.

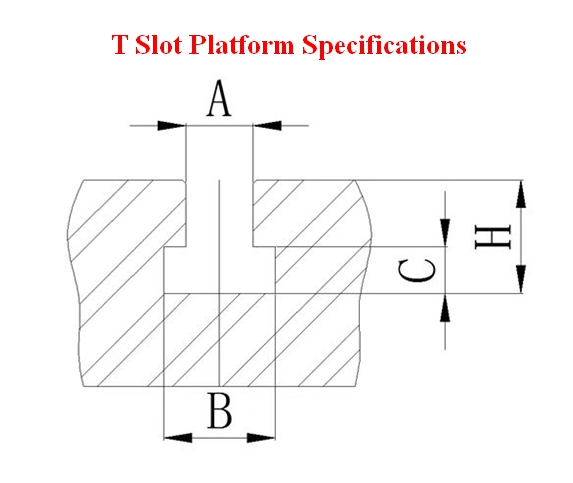

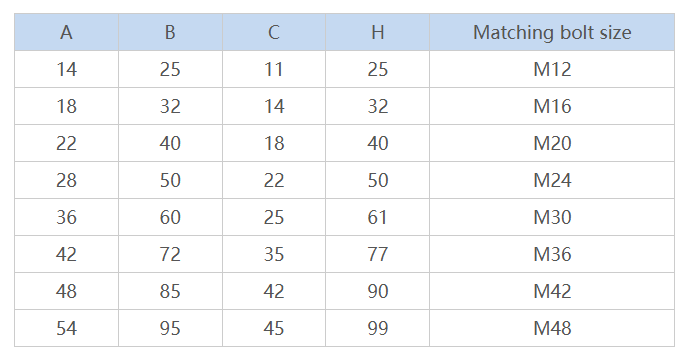

Commonly used T-slot and matching bolt size

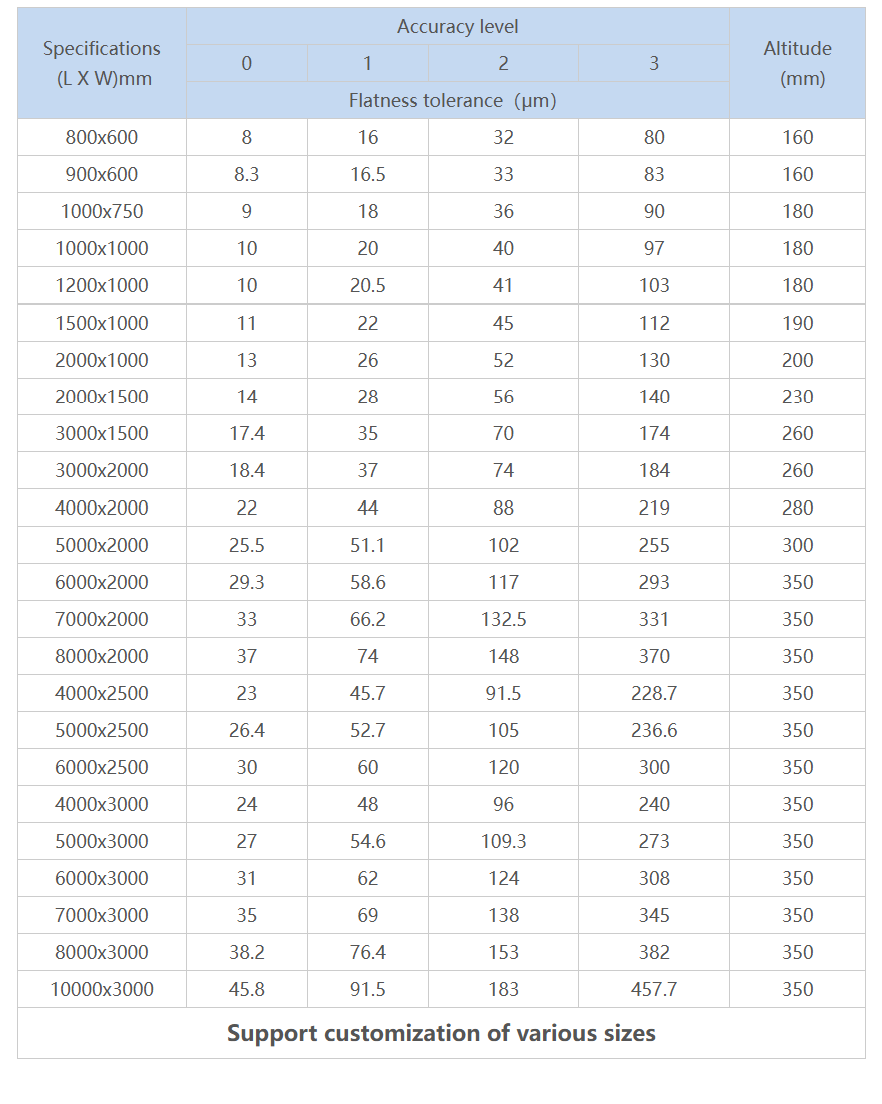

 T-slot platform specifications
